9th gen (FK2/FK3) + 10th gen (FC/FK7/FK8)
Key reference: 35111-SMG-305
Select variant
Select variant

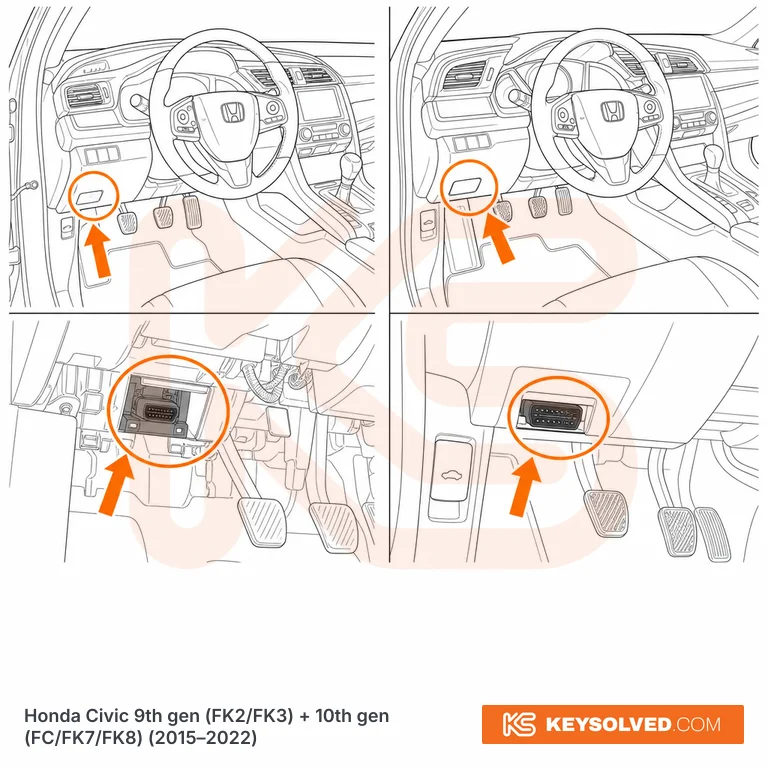

Diagnostic port location (OBD)
Illustrative — for orientation only.
Driver's footwell, below the steering wheel and to the left of the steering column, above the pedals. On the 9th gen (2013-2016), the port is inside the fuse box housing area — requires a torch to locate, recessed position. On the 10th gen (2017-2022), the port is more openly accessible on the lower dashboard panel to the left of the steering column, adjacent to the bonnet release lever. No panel removal required on either generation, but the 9th gen location is recessed and dark.
