Honda Stepwagon OBD port location

On every UK and European Honda Stepwagon we cover, the OBD port is on the driver's side.

One generation, 2009–2015.

2009–2015

4th gen RK

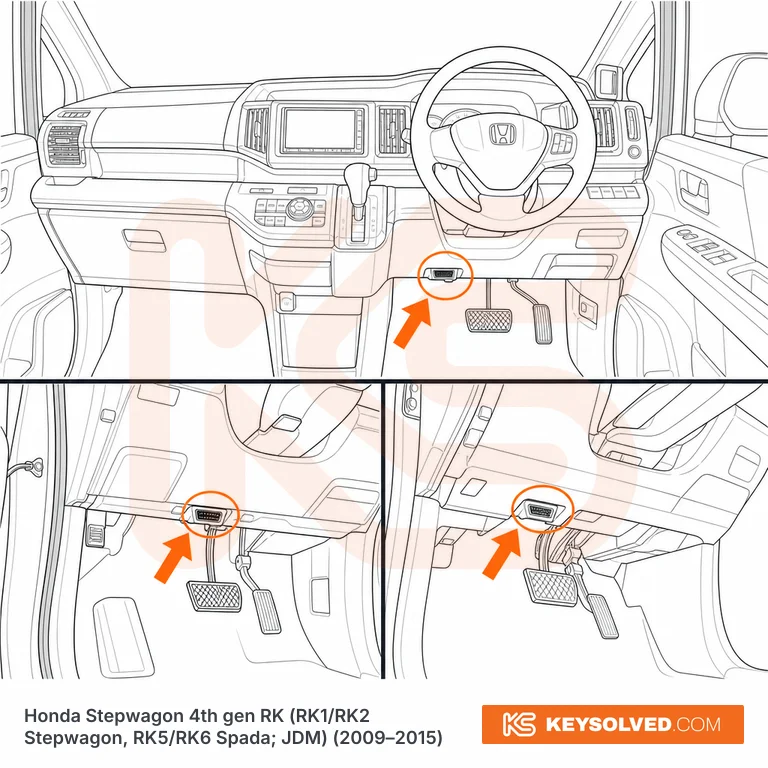

Illustration — use it to know where to look.

Location

Driver's footwell on the left-hand side (the centre-console side on these right-hand-drive cars): the 16-pin connector is mounted low on the underside of the lower dash panel, left of the steering column and ahead of the driver's left knee. It sits low enough that you need to get down into the footwell to see it rather than spot it from the seat. Same position on the standard Stepwagon (RK1/RK2) and the Spada (RK5/RK6), before and after the April 2012 facelift. Every RK was built right-hand drive for Japan; there is no LHD version.

Also on this Stepwagon

  • KeysSmart key · Remote head key
  • Tools confirmed5
  • Transponder chipSubscribers
  • Programming procedureSubscribers
Open the full Stepwagon 4th gen RK record

For locksmiths

Doing this job for a customer?

Get the transponder chip, the add-key and all-keys-lost procedures, and which of your tools will do it, for every Honda Stepwagon.

Subscribe

Questions

Honda Stepwagon OBD questions

4th gen RK (2009–2015): Driver's footwell on the left-hand side (the centre-console side on these right-hand-drive cars): the 16-pin connector is mounted low on the underside of the lower dash panel, left of the steering column and ahead of the driver's left knee.
