Ford Mondeo OBD port location
Two generations, 2007–2022. Pick yours.
2014–2022
Mk5 / CD345
Illustration — use it to know where to look.
Location
Driver's side footwell, left of the pedal cluster. The connector is located above the footrest area. A small plastic cover must be opened to expose the 16-pin socket — pull the cover down or to the side; it is not screw-fixed. In RHD (UK) vehicles the port is under the steering column on the right side above the accelerator pedal. The Mk5 Mondeo OBD port location differs from the Mk4 (2007–2014) which had the port inside a storage compartment to the right of the steering column — do not confuse these generations.
Also on this Mondeo
- KeysFlip remote · Smart key
- Tools confirmed11
- Transponder chipSubscribers
- Programming procedureSubscribers
2007–2014
Mk4

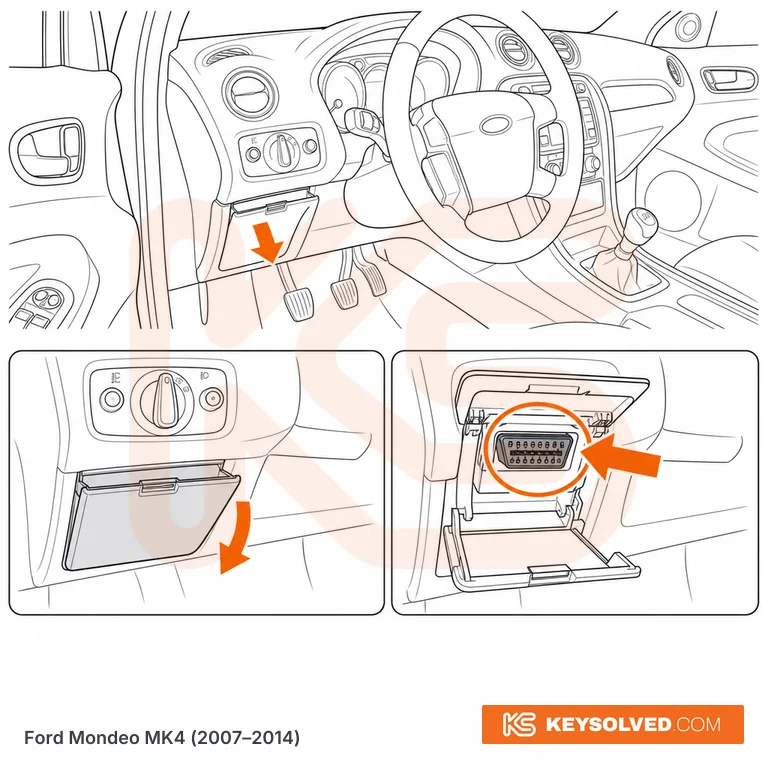

Illustration — use it to know where to look.
Location
Driver's side lower dashboard, in a hinged compartment to the side of the steering column. The outer flap is beneath the headlight switch panel — open it and a second inner flap at the top reveals the OBD port. No tools required.
Also on this Mondeo
- KeysFlip remote · Smart key · Remote head key
- Tools confirmed6
- Transponder chipSubscribers
- Programming procedureSubscribers
