Mk2 (AS33 / AS3A — SAIC's second-generation HS, a rebodied third-generation Roewe RX5; unveiled July 2024, UK sales from late 2024)
Key reference: 11284773

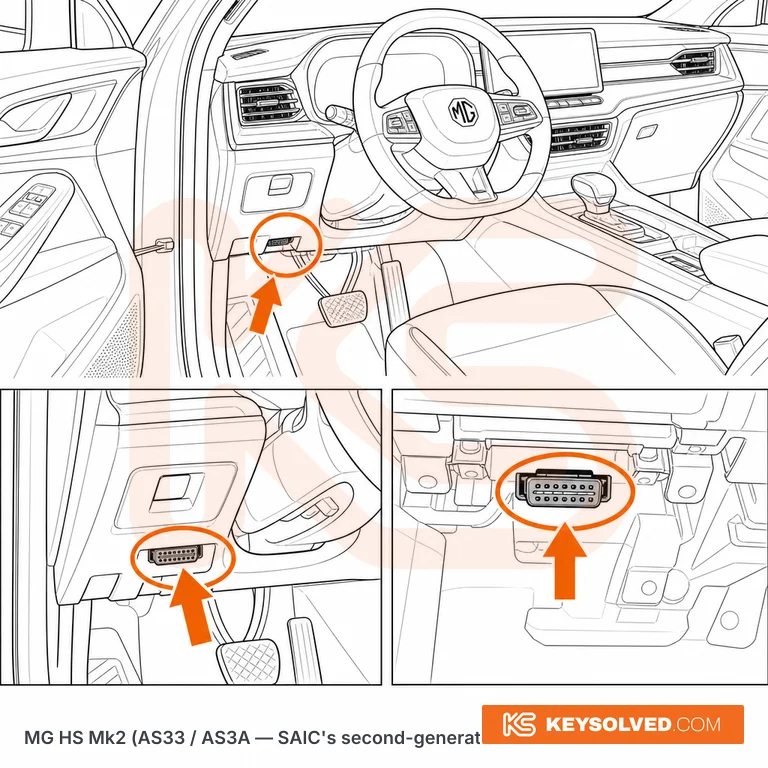

Diagnostic port location (OBD)
Illustrative — for orientation only.
RHD (UK cars): driver's footwell, tucked up above the lower closure panel beneath the steering column, facing downwards. You will not see it from the seat — kneel in the door aperture, reach up past the bottom edge of the knee trim beside the lower steering-column shroud and you will find the 16-pin socket by feel. Same position on SE and Trophy and on all three powertrains (1.5 petrol, Hybrid+, Plug-in Hybrid). LHD cars mirror it: same height and depth, above the lower closure panel on the left-hand side under the column. Do not waste time on the small pull-out tray in the driver's fascia — that is the way into the cabin fuse box, not the diagnostic socket. Worth knowing if you have done the 2019-2023 HS before: that car had the socket further forward, above the pedals, so the muscle memory does not transfer.
