W205
Key reference: A2059056604
Select variant
Select variant

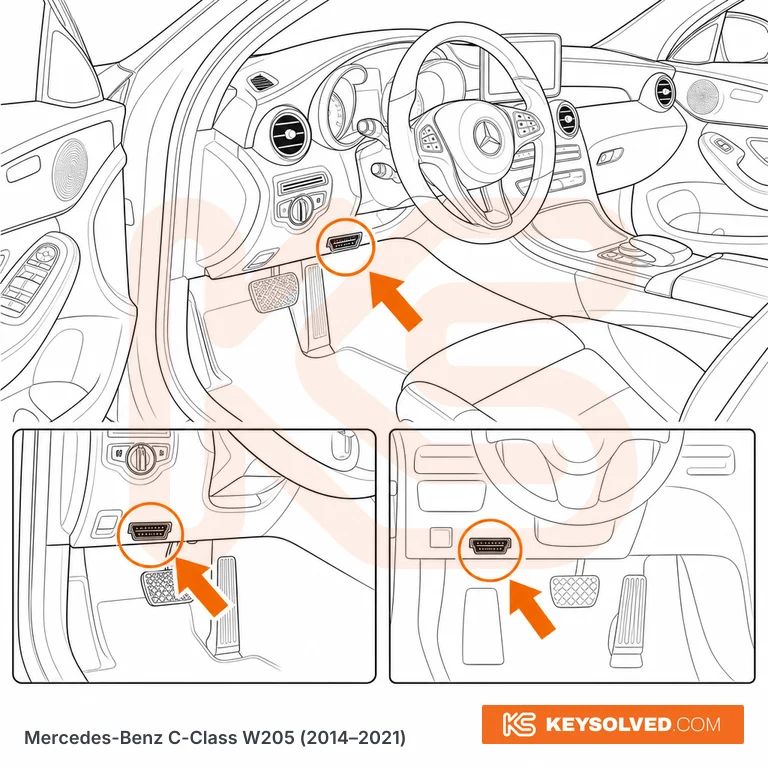

Diagnostic port location (OBD)
Illustrative — for orientation only.
LHD: Driver's footwell, beneath the lower dash trim to the left of the steering column. Follow the line of the bonnet release lever inward and slightly up — the 16-pin socket sits behind a small snap-off plastic cover near the bonnet release, set well back under the dash. RHD (UK): Mirror image — driver's footwell, well back under the dash beyond the bonnet release and a little to the left of it, behind the same small cover. On both sides the socket is set deep and angled upward; a torch helps. Same location across all W205 trims (saloon, estate, coupe, AMG) and across the 2018 facelift.
