III (PD, with PDe facelift from late 2020)
Key reference: 95430-G3200
Select variant
Select variant

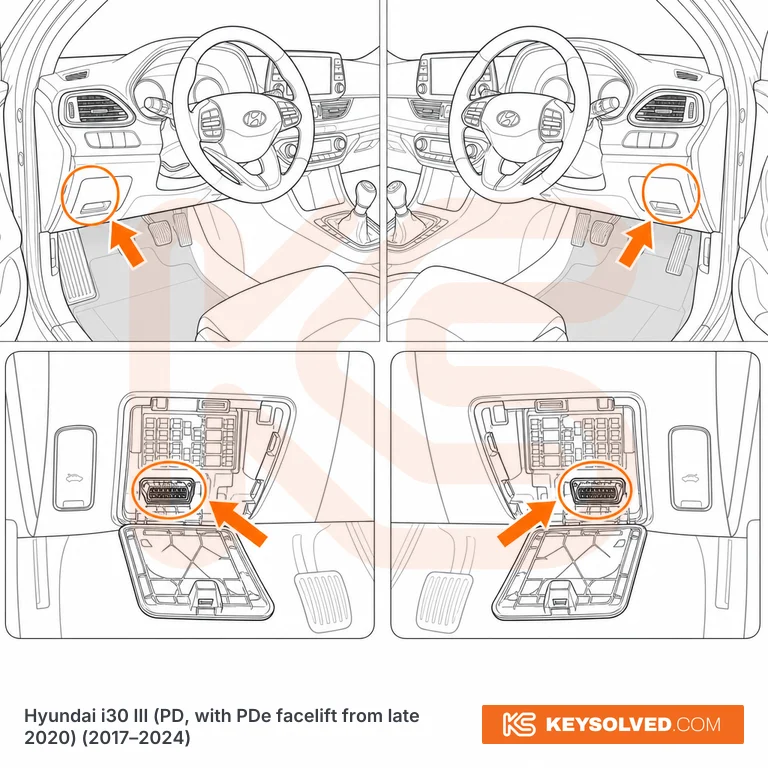

Diagnostic port location (OBD)
Illustrative — for orientation only.
RHD (UK): driver's side of the dash, low down and outboard of the steering column in the driver's panel bolster. The 16-pin socket sits inside the same recess as the cabin fuse panel, so the pull-off lid marked 'Fuse/OBD' is the landmark — not the bonnet release, which is further inboard. LHD: mirror image, low down to the left of the steering column in the same fuse recess. Hyundai prints separate left- and right-hand-drive illustrations of this panel, so it genuinely swaps sides with the driver rather than staying put. Identical on every PD body — 5-door hatch, Fastback and Tourer — on every trim from S up to N Performance, and unchanged by the 2020 facelift.
