RR (1st gen) — RR1/RR2/RR3/RR4 standard, RR5/RR6 Prestige
Key reference: 72147-SJK-J01
Select variant
Select variant

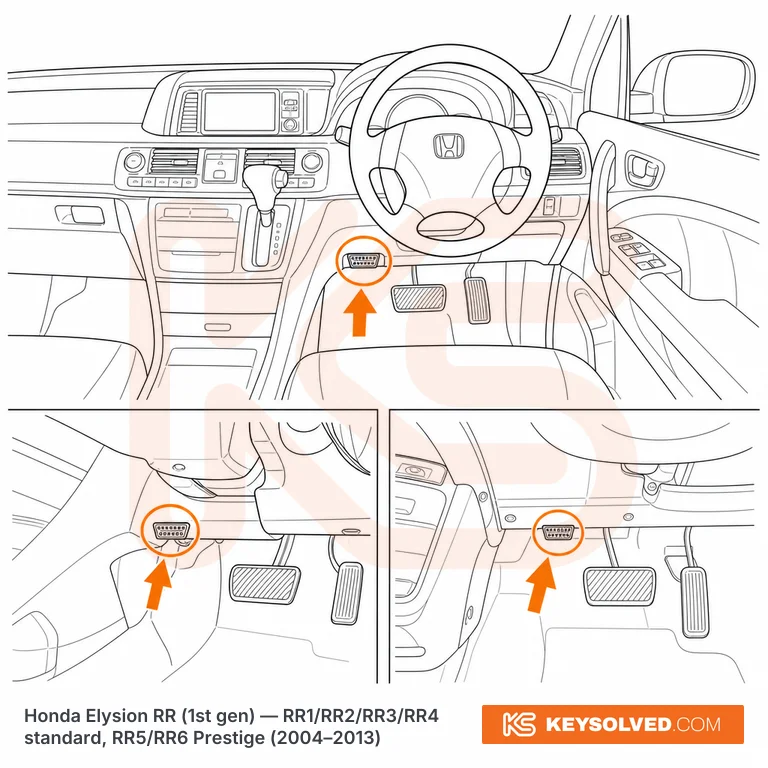

Diagnostic port location (OBD)
Illustrative — for orientation only.
Right-hand drive only — the Elysion was never built in left-hand drive, so there is no LHD position to hunt for. The 16-pin connector sits in the driver's footwell on the LEFT-hand (inboard) side, up under the lower dash trim towards the accelerator pedal and the edge of the centre console — not out by the right-hand kick panel or the interior fuse box, which is where most people waste the first two minutes. Drop your head into the footwell and look up past the steering column: the socket faces downwards and you can reach it without pulling any trim. Same position on the standard Elysion (RR1-RR4) and on the Prestige (RR5/RR6), and unchanged from the 2004 cars through to the last 2013 build.
