5th gen (RW / RT hybrid)
Key reference: 72147-TLA-G110-M1
Checked against tool makers' lists and key suppliers. We only change this date when the data has been rechecked against evidence, not for small edits. Spot something wrong? Use Report a data issue at the bottom of this page and we'll look again.
Key variant · 1 of 2
Key
Compatible tools
ConfirmedOBD port

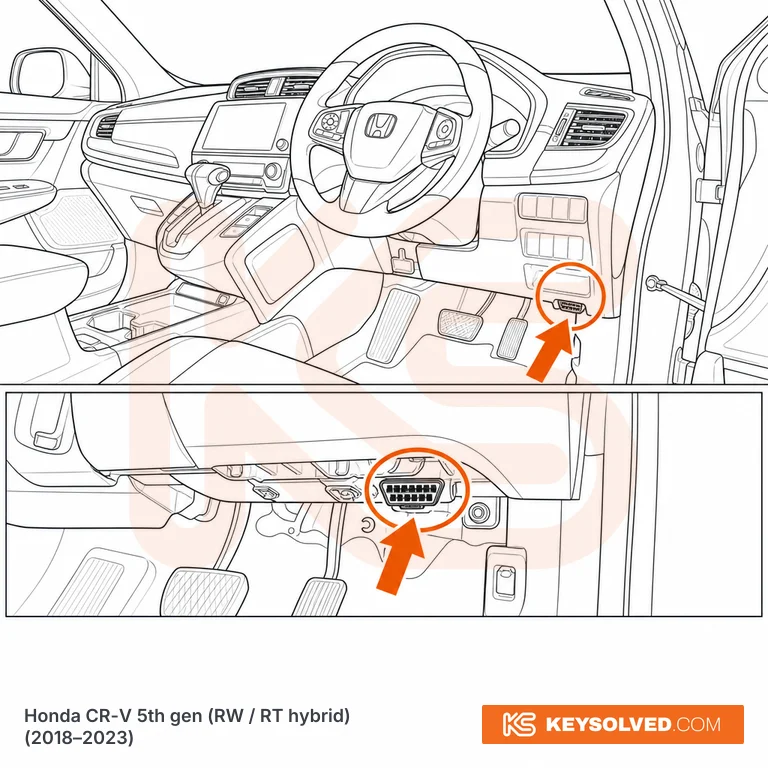

Illustration — use it to know where to look.
RHD (UK): driver's footwell on the right-hand (door) side, under the outer lower edge of the dashboard, outboard of the steering column. Same position on petrol 1.5 VTEC Turbo and the 2.0 i-MMD / e:HEV hybrid, and across S, SE, SR, EX and Sport Line. If you can't see it from the seat, get your head down into the footwell and look up under the outer dash corner with a torch.
Usually exposed. On some cars a small trim panel or lid sits over the socket. It pulls away by hand, and the 16-pin socket is behind it.
