RD (2nd generation) — RD8 2.0 i-VTEC, RD9 2.2 i-CTDi
Key reference: 72147-S9A-G01
Select variant
Select variant

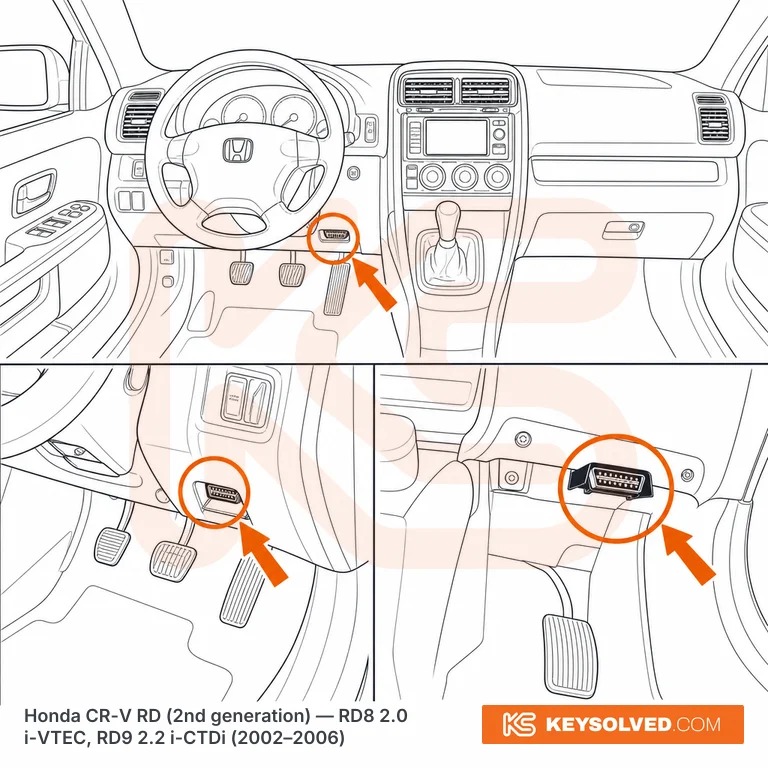

Diagnostic port location (OBD)
Illustrative — for orientation only.
RHD (UK): driver's footwell on the LEFT-hand side — inboard of the steering column, tucked up into the corner where the underside of the dash meets the centre console trim, above and inboard of the accelerator pedal. It faces down and slightly rearward so you cannot see it from the seat; drop your head into the footwell and look up into that corner, or feel along the top edge of the trim. LHD (mainland Europe): mirrored — driver's footwell on the right-hand side of the lower dash, just left of the centre console and directly above the accelerator pedal. Same position on every trim (SE, SE Sport, SE Executive, and the facelift Sport and Executive), petrol 2.0 i-VTEC and 2.2 i-CTDi diesel alike, and unchanged by the 2005 facelift. Expect a sparsely populated connector: on a UK car only pins 4, 5, 7, 12 and 16 are wired, so if your lead reads 'no CAN' that is normal, not a fault.
