V227 (1st gen)
Key reference: 4622489 / XW4T-15K601-BC (3-button remote, 433 MHz, shared with Transit MK6/Maverick)
Select variant
Select variant

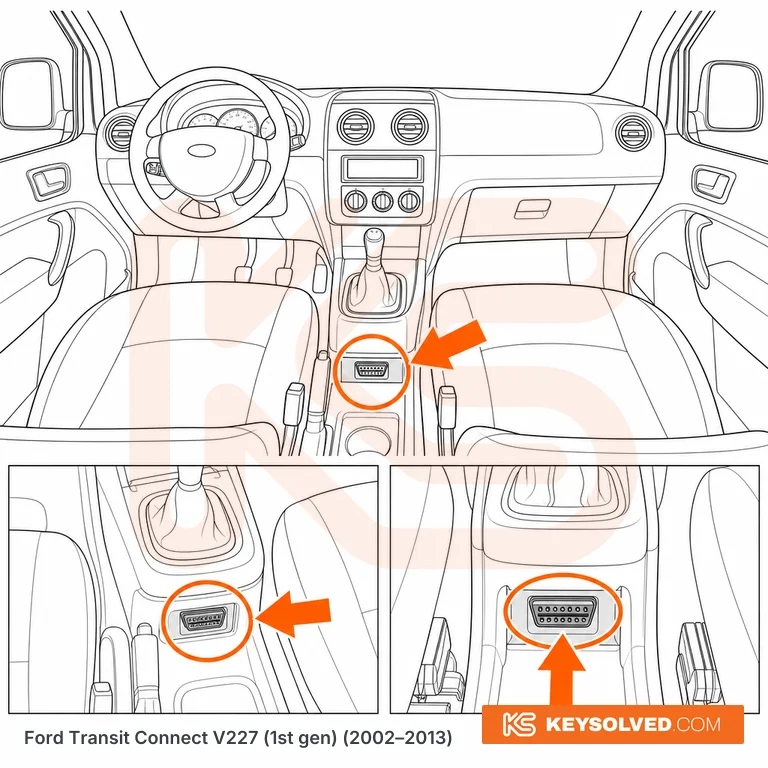

Diagnostic port location (OBD)
Illustrative — for orientation only.
Between the two front seats, under the centre console, in front of the gear lever. This is not the typical footwell location — on the Transit Connect Mk1 the port is accessible from between the seats near the gear stick area. Standard 16-pin OBD-II connector. Same location across all trims (T200, T220, T230). Applies to both LHD and RHD models.
