Toyota Yaris
2011–2020

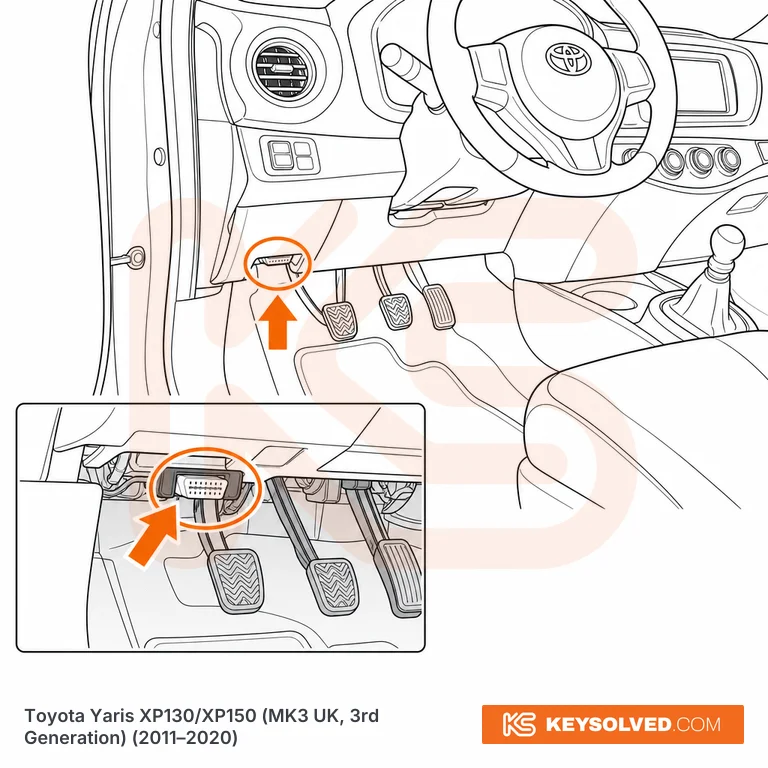

Illustrative — for orientation only.

Location

Driver's side footwell, underneath the dashboard, above the clutch pedal. The connector is behind the lower dashboard plastic trim. White 16-pin connector - no screw cover, but the surrounding trim panel obscures it slightly. Access from a crouched position looking up from the pedal box.
