XP90 (Mk2)
Key reference: 89070-52850
Select variant
Select variant

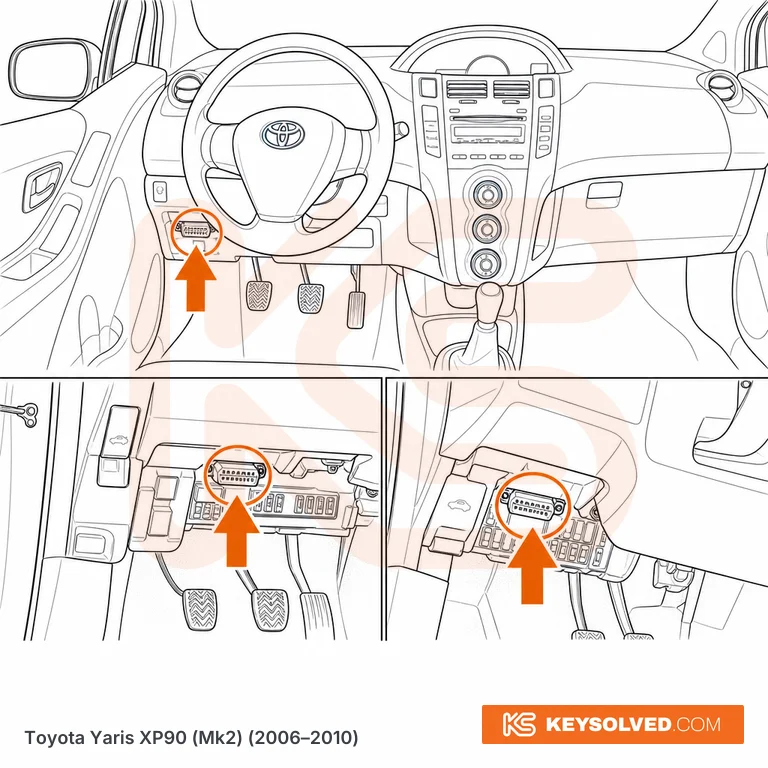

Diagnostic port location (OBD)
Illustrative — for orientation only.
RHD (UK): driver's footwell, high up under the dash and just past the bonnet release lever — look upwards from above the pedals rather than feeling behind the instrument cluster. It is a white 16-pin connector facing downwards, sitting in the same place on T2, T3 and T Spirit. LHD: mirrored to the other side, driver's footwell, same height above the pedals, same white connector under the lower dash beside the cabin fuse box area.
