AH30 (30 series)
Key reference: 231451-0120
Diagnostic port location (OBD)

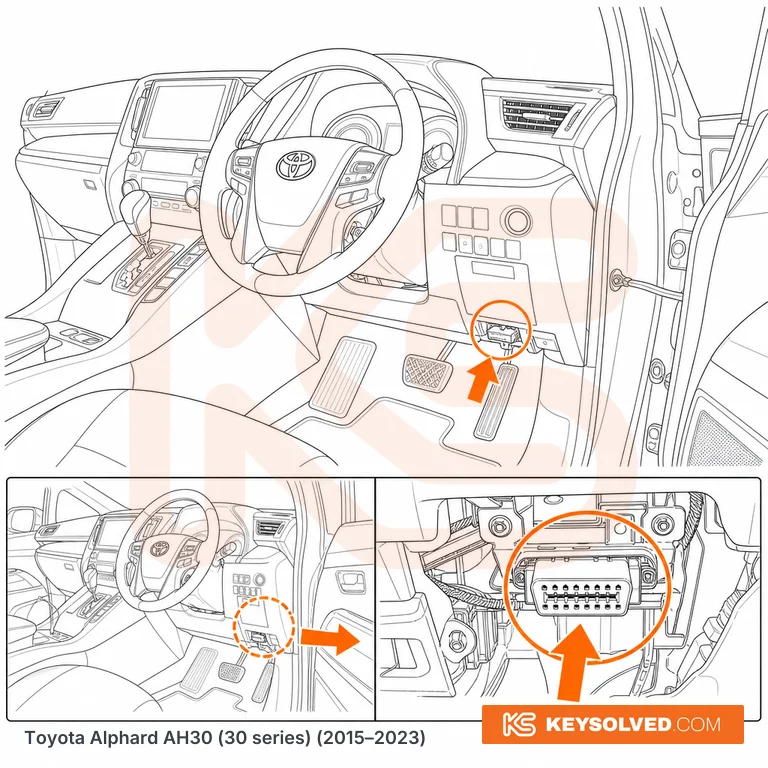

Illustrative — for orientation only.
Japanese-market AH30 is right-hand drive. The 16-pin OBD socket sits under the dash on the driver's side (right), tucked up behind and slightly right of the steering column, just above the accelerator/footrest area on a metal bracket. It is the white Toyota connector you reach by ducking your head into the footwell — no panel to remove, it faces downward. Same position across every AH30 trim and grade (standard, S, SC, Executive Lounge, hybrid AYH30W and petrol AGH30/GGH30).
