Seat Alhambra
2010–2020

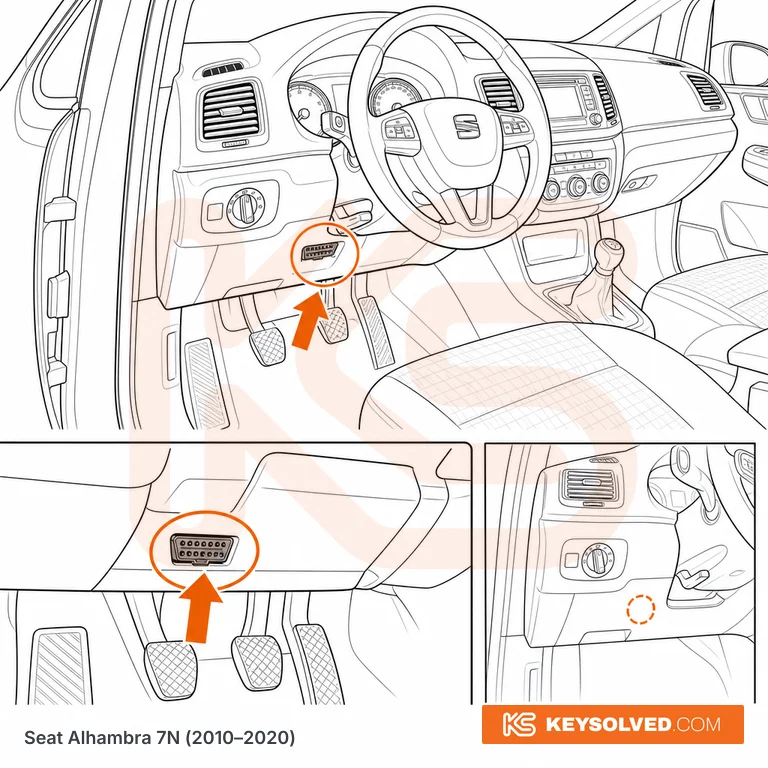

Illustrative — for orientation only.

Location

Right-hand-drive UK cars: driver's side, under the lower dash trim directly above the pedal box, just to the right of the steering column. The 16-pin socket is open and reachable by hand without removing any panel. The main fuse box is separate (end of dash behind a clip-off cover / glovebox area), so don't confuse the two. Same position across all 7N trims and bodystyles.
