MQ / MR (Series 5)
Key reference: 8637B107
Select variant
Select variant

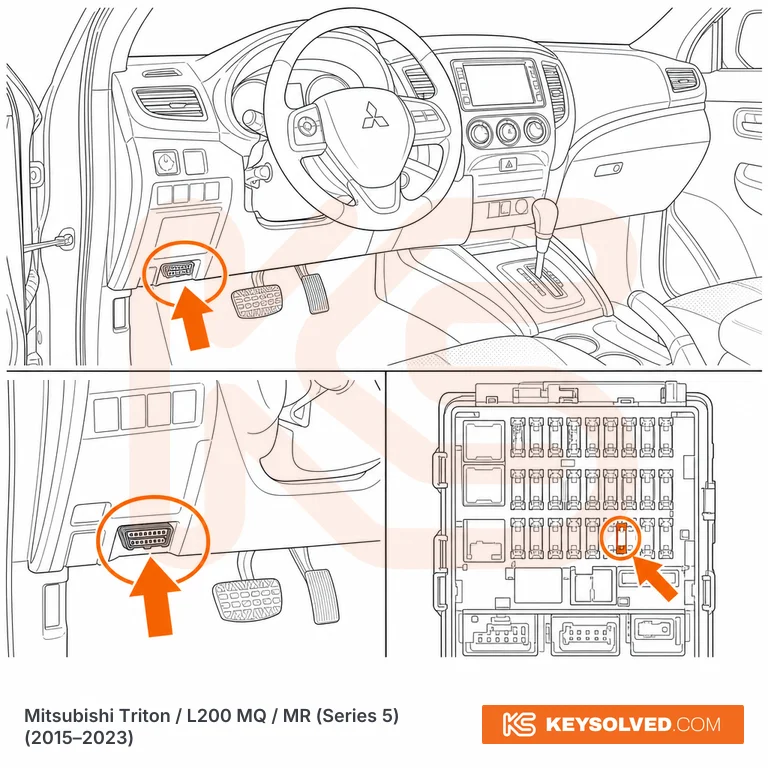

Diagnostic port location (OBD)
Illustrative — for orientation only.
Driver's side lower dashboard, beneath the steering column, above the brake pedal. On RHD vehicles (UK, Aus, NZ, Middle East RHD) the port is on the right side of the footwell beneath the steering column. Standard 16-pin OBD2 connector, directly accessible without trim removal. Fuse protecting the datalink connector is a 10-amp fuse in the interior fusebox.
