Mitsubishi L200
2001–2006

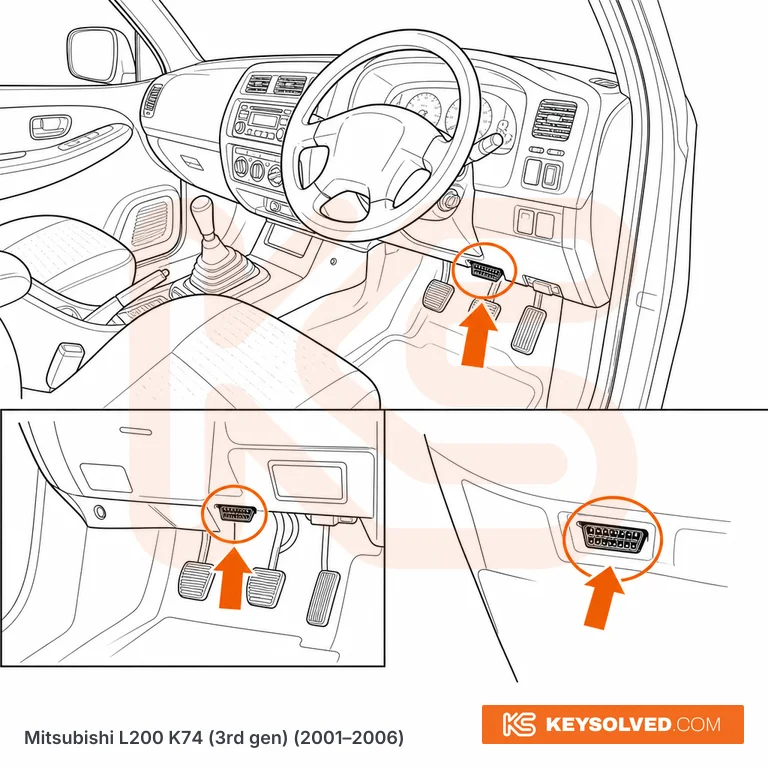

Illustration — use it to know where to look.

Location

Driver's footwell on a right-hand-drive UK truck: low under the dashboard, above the pedals (just above the brake pedal) at the bottom edge of the dash trim. The 16-pin connector faces downward and is exposed with no cover to remove. Same position across Double Cab trims (4Work, Warrior, Animal, Trojan).
