KE (1st gen)
Key reference: KDY3-67-5DY
Select variant
Select variant

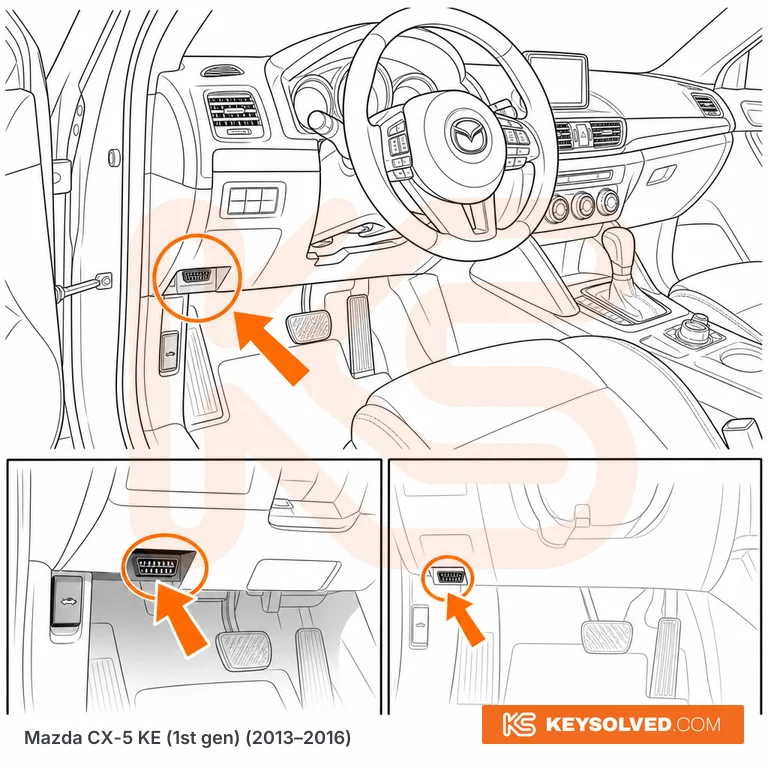

Diagnostic port location (OBD)
Illustrative — for orientation only.
Under the driver's side dashboard, to the left of the steering column in the lower-left area of the driver's footwell, adjacent to the hood release lever. The 16-pin OBD-II connector is recessed — reach under and feel for it. No panel cover. Standard DLC-2 location consistent across all 2013-2016 US CX-5 trims.
