Ford F-150
2009–2014

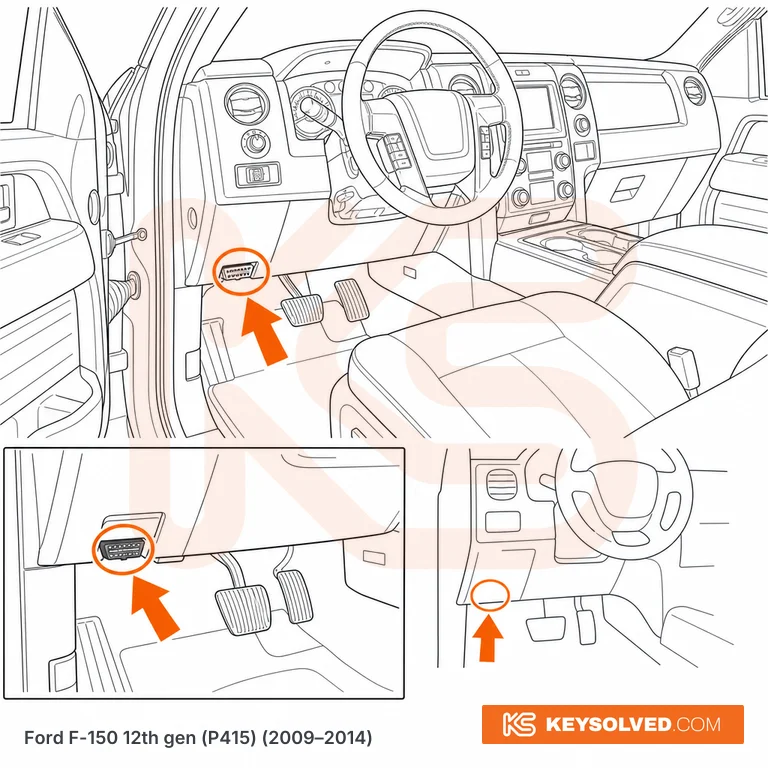

Illustration — use it to know where to look.

Location

Driver's side, on the bottom edge of the lower dash panel just left of the steering column, roughly above the driver's left knee. The 16-pin connector faces down and is screwed to the underside of the dash with two vertical screws, so you look up under the dash edge with a torch rather than straight at it. Same position on every 2009-2014 cab (Regular, SuperCab, SuperCrew) and trim including Raptor; US trucks are left-hand drive only. Ex-fleet and remote-start trucks often have a second harness or a telematics box plugged in behind the factory port, sometimes zip-tied up out of sight: if the tool will not talk, check you are on the real vehicle port and not a pass-through.
