Type 250 (2006-2014) / Type 290 (2014-2024)
Key reference: 71749162
Select variant
Select variant
Diagnostic port location (OBD)

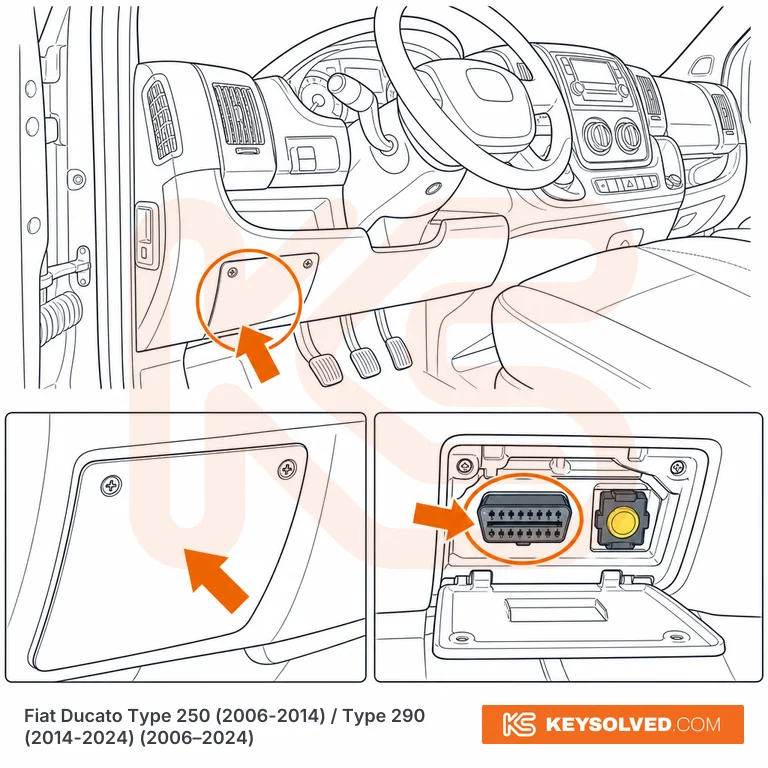

Illustrative — for orientation only.
Driver's side lower dashboard. Behind a small hinged cover secured by two crosshead screws, located to the left of the steering column below the fuse box. Remove both screws, open the panel, and the OBD2 port is visible inside. The port may have a rubber cap with a yellow centre on Type 290 (2014+). Same general location on both Type 250 (2006-2014) and Type 290 (2014-2024).
