1st gen (J300), US build incl. 2016 Cruze Limited
Key reference: 13504199
Select variant
Select variant

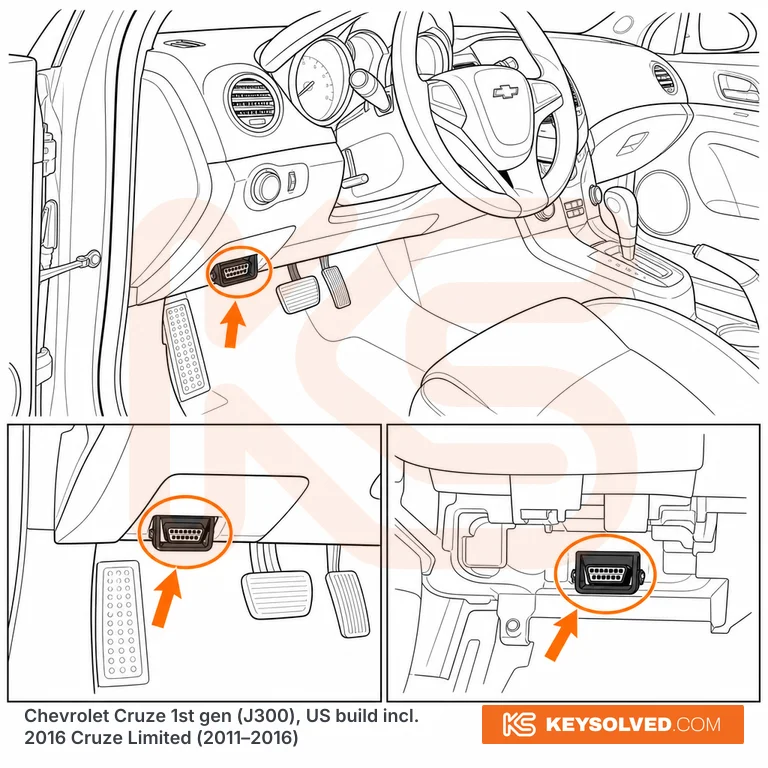

Diagnostic port location (OBD)
Illustrative — for orientation only.
LHD (US, Canada, Mexico): under the lower edge of the instrument panel, immediately left of the steering column, about level with the driver's left knee and above the dead pedal. The 16-pin connector sits in a black bracket facing down and rearward. You will not see it sitting upright in the seat, so drop your head to seat-cushion height. There is no parking-brake pedal to use as a landmark because the Cruze has a centre-console hand lever. The nearest thing to aim for is the fuse-panel end cover at the driver's end of the dash: the connector sits a hand's width inboard of it and lower down. The position is the same on the sedan in LS, LT, Eco, Diesel, LTZ and RS-package form and on the 2016 Cruze Limited. Known quirk: on some cars the connector was never clipped into its bracket at the plant, or has been pushed up behind the lower dash trim. If the bracket is empty, feel up and back behind the trim lip before you assume it has been removed. RHD: not applicable, because this record covers only North American left-hand-drive cars.
