Mitsubishi L200 OBD port location

Two generations, 2001–2015. Pick yours.

2006–2015

Series 4 / 5

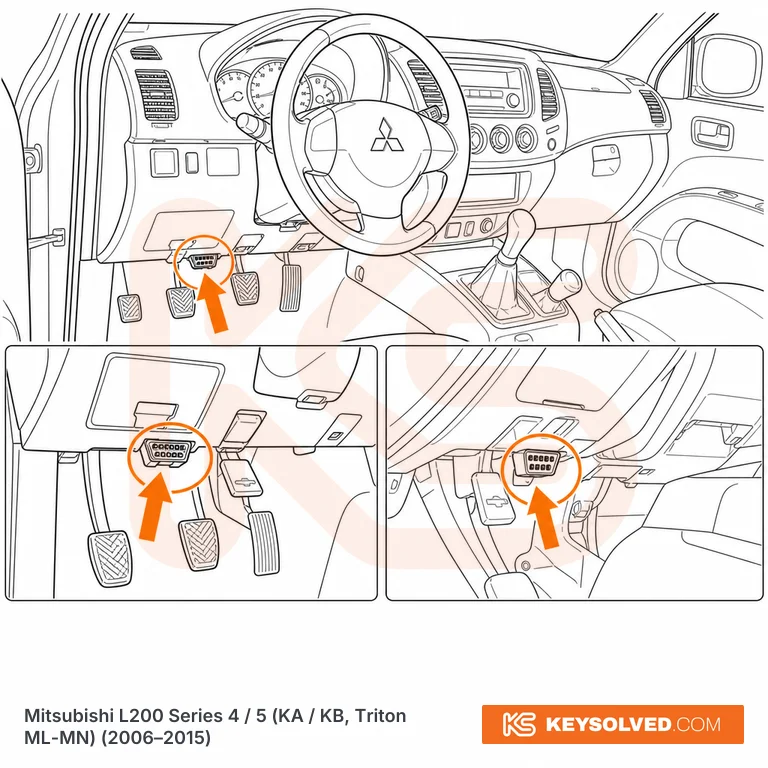

Illustration — use it to know where to look.

Location

Drive side not stated by the source: above the pedals, next to the second lever under the dash (klavkarr community photos). Not confirmed for UK right-hand-drive trucks.

Also on this L200

  • KeysRemote head key · Transponder
  • Tools confirmed2
  • Transponder chipSubscribers
  • Programming procedureSubscribers
Open the full L200 Series 4 / 5 record

2001–2006

K74 (3rd gen)

Illustration — use it to know where to look.

Location

Driver's footwell on a right-hand-drive UK truck: low under the dashboard, above the pedals (just above the brake pedal) at the bottom edge of the dash trim. The 16-pin connector faces downward and is exposed with no cover to remove. Same position across Double Cab trims (4Work, Warrior, Animal, Trojan).

Also on this L200

  • KeysTransponder · Remote head key
  • Tools confirmed7
  • Transponder chipSubscribers
  • Programming procedureSubscribers
Open the full L200 K74 record

Questions

Mitsubishi L200 OBD questions

Series 4 / 5 (2006–2015): Drive side not stated by the source: above the pedals, next to the second lever under the dash (klavkarr community photos). K74 (2001–2006): Driver's footwell on a right-hand-drive UK truck: low under the dashboard, above the pedals (just above the brake pedal) at the bottom edge of the dash trim.
