Mini Clubman OBD port location

One generation, 2015–2024.

2015–2024

F54

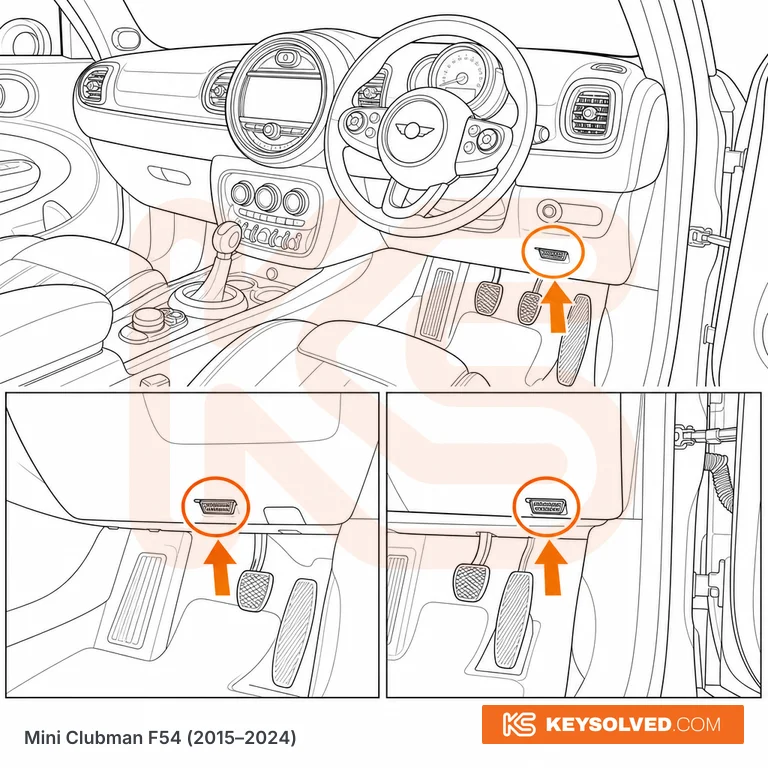

Illustration — use it to know where to look.

Location

LHD: driver's footwell, set into the underside of the lower dash on the door side, directly above the footrest and just ahead of the driver's left knee - the socket faces downwards so you feel for it rather than see it. UK RHD: driver's footwell on the right-hand side of the car, in the underside of the lower dash above the pedal area, facing downwards. Same position on all F54 trims; use a phone camera to spot it.

How to access

Small plastic cover clipped over the socket - slide or pull it off by hand, no tools. The 16-pin connector is then exposed facing downwards.

Also on this Clubman

  • KeysSmart key
  • Tools confirmed31
  • Transponder chipSubscribers
  • Programming procedureSubscribers
Open the full Clubman F54 record

Questions

Mini Clubman OBD questions

F54 (2015–2024): LHD: driver's footwell, set into the underside of the lower dash on the door side, directly above the footrest and just ahead of the driver's left knee - the socket faces downwards so you feel for it rather than see it.
