Kia K5 OBD port location

One generation, 2021–2024.

2021–2024

3rd gen

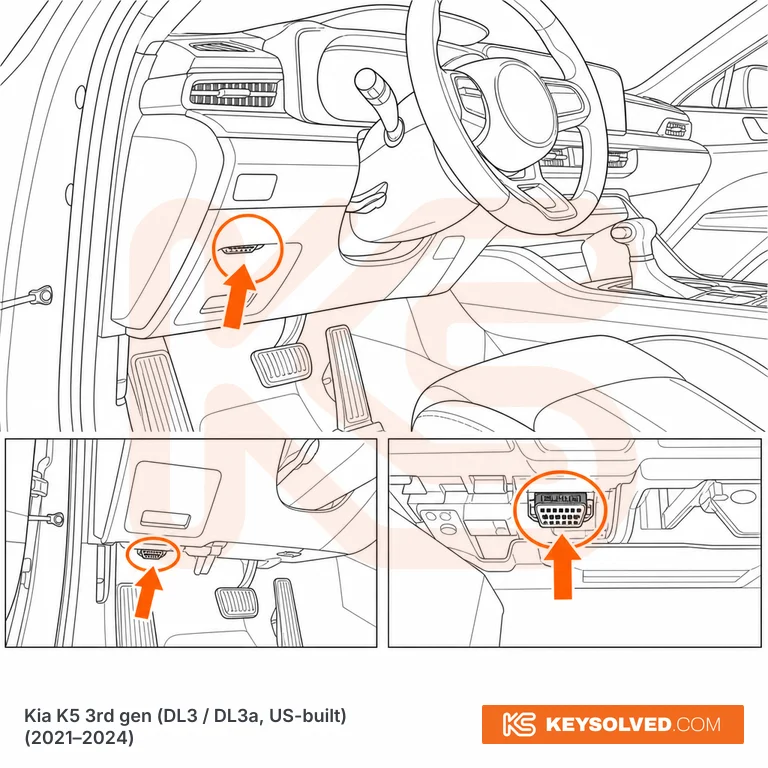

Illustration — use it to know where to look.

Location

Under the driver's side of the instrument panel, at the lower edge of the dash to the left of the steering column and just inboard of the driver's-side interior fuse panel access cover. The 16-pin connector faces down towards the footwell and can be reached from the driver's seat without removing trim. Same position on LX, LXS, GT-Line, EX and GT; US and Canadian cars are left-hand drive only.

Also on this K5

  • KeysFlip remote · Smart key
  • Tools confirmed9
  • Transponder chipSubscribers
  • Programming procedureSubscribers
Open the full K5 3rd gen record

Questions

Kia K5 OBD questions

3rd gen (2021–2024): Under the driver's side of the instrument panel, at the lower edge of the dash to the left of the steering column and just inboard of the driver's-side interior fuse panel access cover.
