T32
Key reference: 285E3-4CB0C
Checked against tool makers' lists and key suppliers. We only change this date when the data has been rechecked against evidence, not for small edits. Spot something wrong? Use Report a data issue at the bottom of this page and we'll look again.
Key variant · 1 of 2
Key
Compatible tools
ConfirmedOBD port

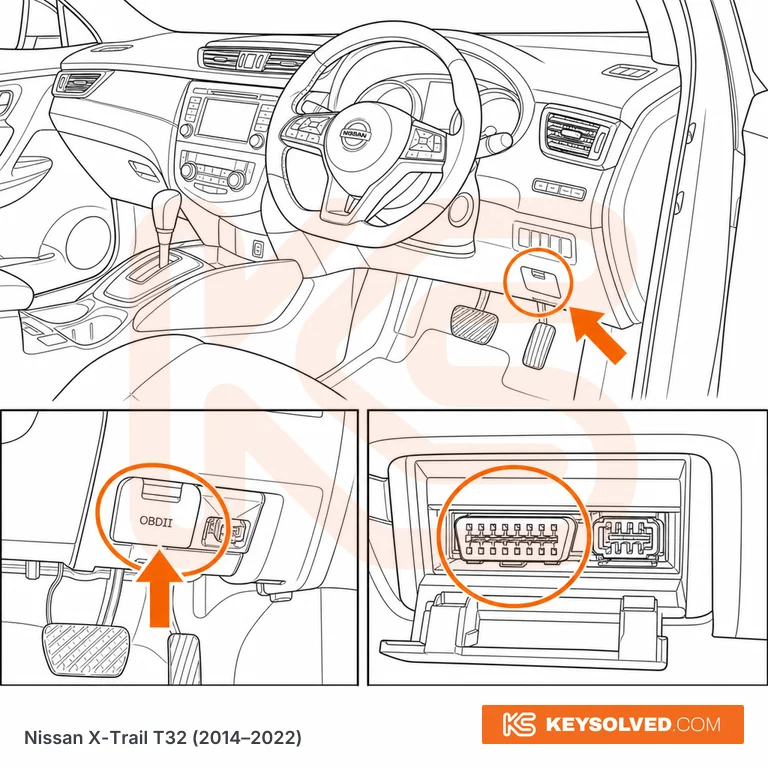

Illustration — use it to know where to look.
RHD (Australian cars): driver's footwell, in the lower dash panel under the steering column, above the brake pedal and level with the driver's right knee. The 16-pin port is white and sits behind a small clip-on cover printed 'OBDII'. A second, narrower connector sits beside it; the wide 16-pin one is the diagnostic port. Same position on every T32 grade and on Series I (2014-2017) and Series II (2017-2022).
Clip-on plastic cover printed 'OBDII' in the lower dash under the steering column. Grip the bottom edge and pull it straight towards you. It's tight and the side clips break easily, so pull from the bottom rather than levering the sides. No tools needed. The 16-pin connector is visible as soon as the cover is off.
