ZE1 (2nd generation)
Key reference: 285E3-5SA0A

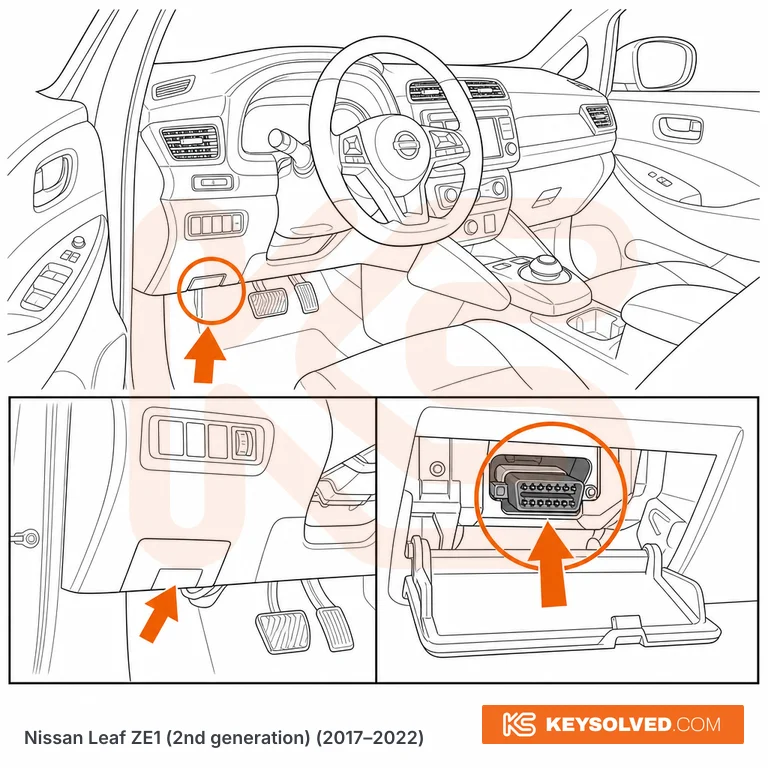

Diagnostic port location (OBD)
Illustrative — for orientation only.
Driver's side, under the steering column. On RHD (UK) vehicles: below and to the right of the steering column, facing downward. On LHD vehicles: below and to the left of the steering column. A small plastic cover must be removed to access the 16-pin OBD2 connector. Confirmed on multiple RHD ZE1 examples including 40kWh and 62kWh variants.
