F16
Key reference: H0561-4CA0A
Select variant
Select variant

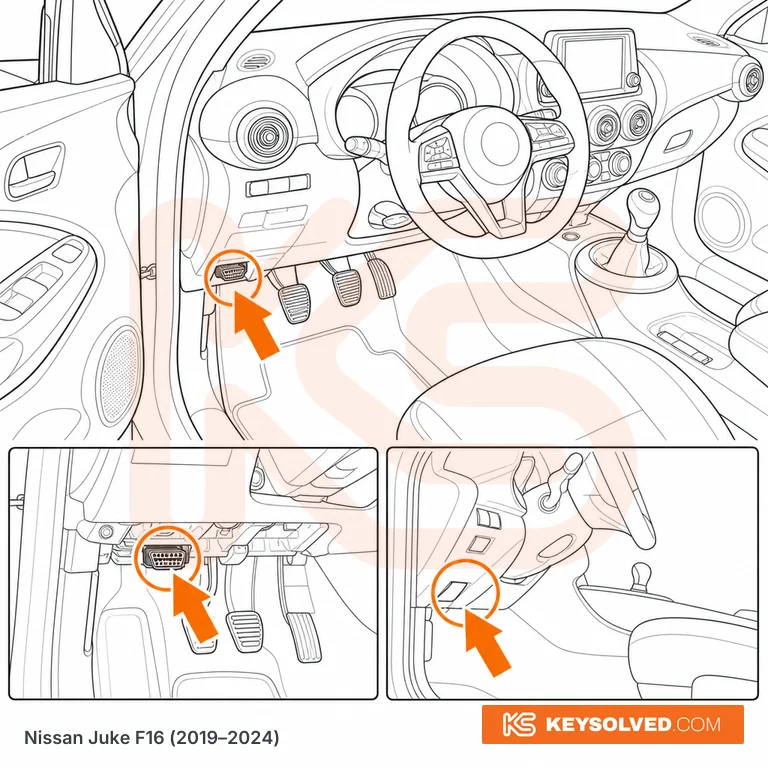

Diagnostic port location (OBD)
Illustrative — for orientation only.
Driver's footwell, lower dashboard area below and to the left of the steering column. The 16-pin OBD2 connector is located in the driver's footwell without a cover — consistent with the CMF-B platform pattern (same as Nissan Micra K14 which uses the same platform). No trim panel cover required. NOTE: exact F16-specific location flagged for review in sidecar — verify on first job.
