ND (Mk4) — ND1 2015-2018 and ND2 2019-2023, Roadster and RF. Excludes the ND3 facelift (2024 on), which has a different key and electronics.
Key reference: GHY5-67-5DY
Checked against tool makers' lists and key suppliers. We only change this date when the data has been rechecked against evidence, not for small edits. Spot something wrong? Use Report a data issue at the bottom of this page and we'll look again.
Key variant · 1 of 2
Key
Compatible tools
ConfirmedOBD port

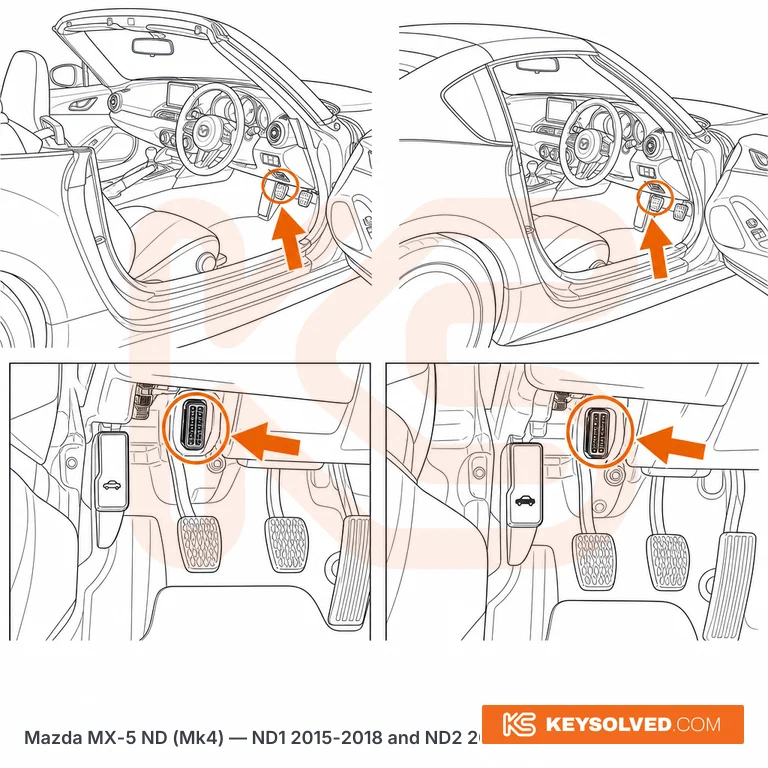

Illustration — use it to know where to look.
RHD (UK): Driver's footwell, up under the lower edge of the dash, mounted vertically just behind the bonnet release lever. Put your head in the footwell and look up behind the lever. The 16-pin socket faces down and there is no trim to remove. Same place on Roadster and RF, ND1 and ND2. LHD (European imports): same position on the left-hand side, above the clutch pedal next to the bonnet release.
