Toyota Corolla Axio / Corolla Fielder OBD port location
Two generations, 2006–2019. Pick yours.

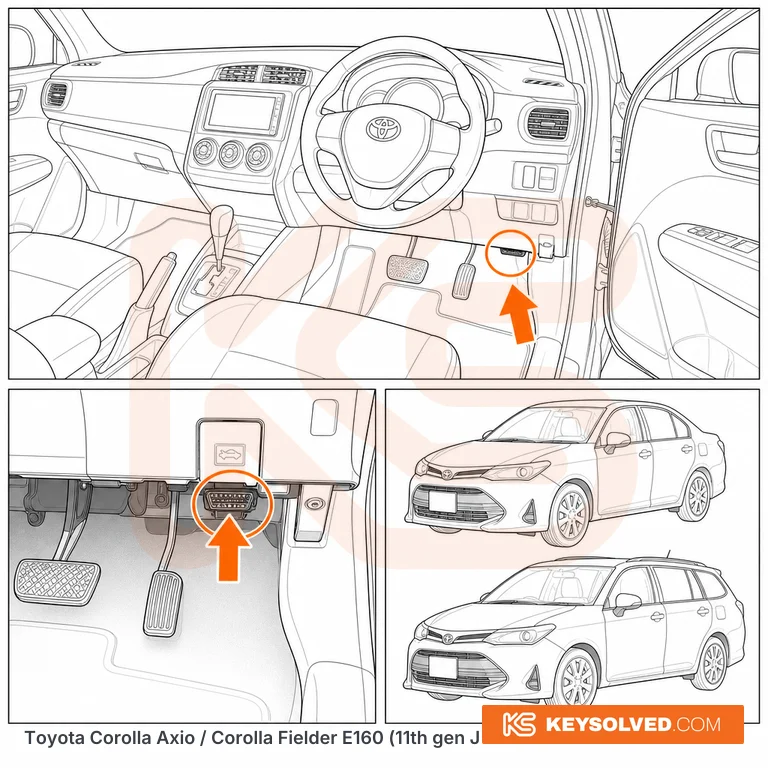

2012–2019
E160
Illustration — use it to know where to look.
Location
Right-hand drive (Japanese market). Driver's footwell on the right-hand side, under the lower edge of the dash just below the bonnet release lever. The 16-pin connector faces down - crouch at the driver's door and look up under the dash edge beside the bonnet release. Same position on Axio saloon and Fielder wagon, petrol and hybrid, before and after the 2015 facelift.
Also on this Corolla Axio / Corolla Fielder
- KeysSmart key
- Tools confirmed10
- Transponder chipSubscribers
- Programming procedureSubscribers
2006–2012
E140/ZRE142 (10th gen JDM)
Illustration — use it to know where to look.
Location
Driver's footwell, left side of dashboard near the hood release lever, below and to the left of the steering column. No cover — port is accessible without removing any panel.
Also on this Corolla Axio / Corolla Fielder
- KeysSmart key · Transponder
- Tools confirmed25
- Transponder chipSubscribers
- Programming procedureSubscribers
