Scion xB OBD port location

Two generations, 2004–2015. Pick yours.

2008–2015

2nd Gen

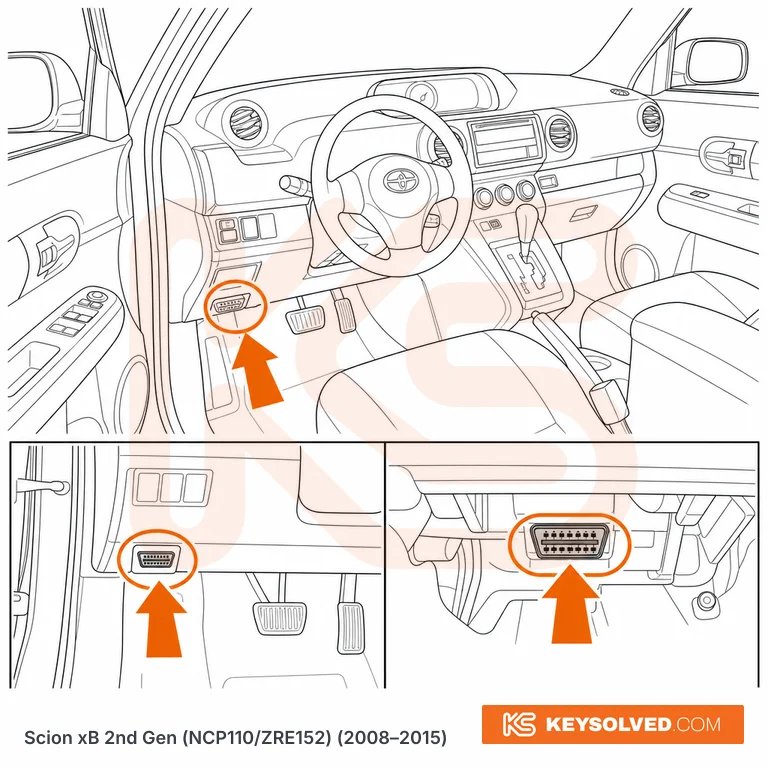

Illustration — use it to know where to look.

Location

Under the dashboard, driver side, left of steering column. Directly accessible — no panel removal required.

Also on this xB

  • KeysFixed remote
  • Tools confirmed5
  • Transponder chipSubscribers
  • Programming procedureSubscribers
Open the full xB 2nd Gen record

2004–2006

1st Gen (NCP31)

Location

Under the dashboard, driver side, left of steering column. Directly accessible.

No diagram for this one yet. Ask for one and we'll draw it. The more requests, the sooner.

Also on this xB

  • KeysTransponder
  • Tools confirmed1
  • Transponder chipSubscribers
  • Programming procedureSubscribers
Open the full xB 1st Gen record

Questions

Scion xB OBD questions

2nd Gen (2008–2015): Under the dashboard, driver side, left of steering column. 1st Gen (2004–2006): Under the dashboard, driver side, left of steering column.
