E25
Key reference: H0564-AU100
Select variant
Select variant

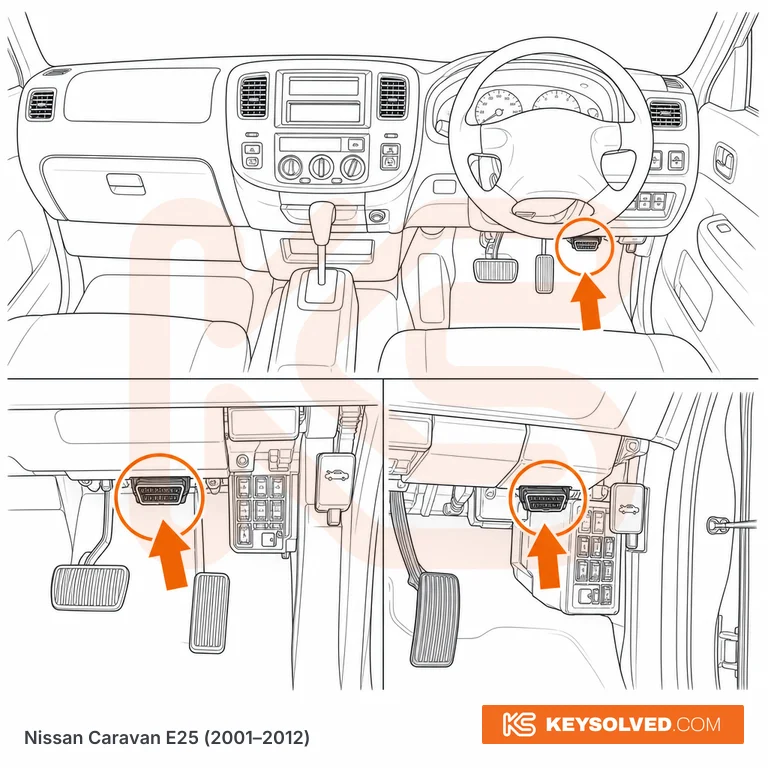

Diagnostic port location (OBD)
Illustrative — for orientation only.
RHD only (JDM): driver's footwell on the right-hand side, low on the underside of the dash below the steering column, roughly above the accelerator/throttle area and to the right of the centre console, near the fuse box and bonnet release. The 16-pin connector faces downward and is exposed with no cover. Position is consistent across DX, GX, Silk Road and Super GX grades. Note this is a diagnostics/engine port only — there is no immobiliser to program, so the OBD port is not used for key work on this van.
