Land Rover Discovery 2
1998–2004

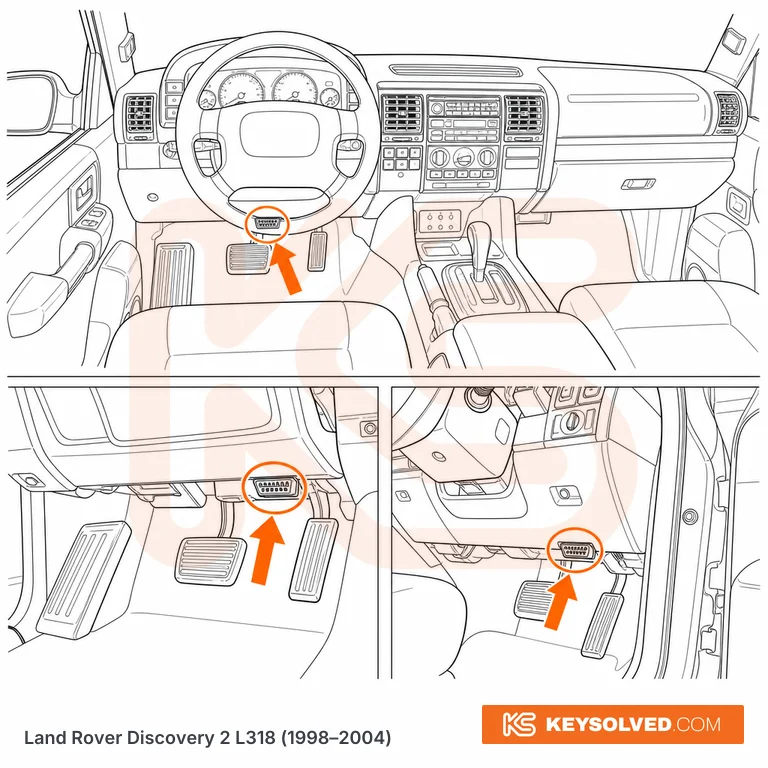

Illustration — use it to know where to look.

Location

RHD: Driver's footwell, to the left of the steering column, above the left footrest pedal. The 16-pin connector sits behind the lower edge of the dashboard — you need to lean under the dash to see it. No cover or panel to remove. Same location on all Discovery 2 trims (S, GS, ES, Metropolis, Pursuit). LHD: Passenger side of the steering column, above the accelerator pedal, below the lower dash panel. Same access — no cover.
