T6.2 / Next-Gen (6th Generation Global Ranger)
Key reference: P3N9-15K601-AA
Select variant
Select variant

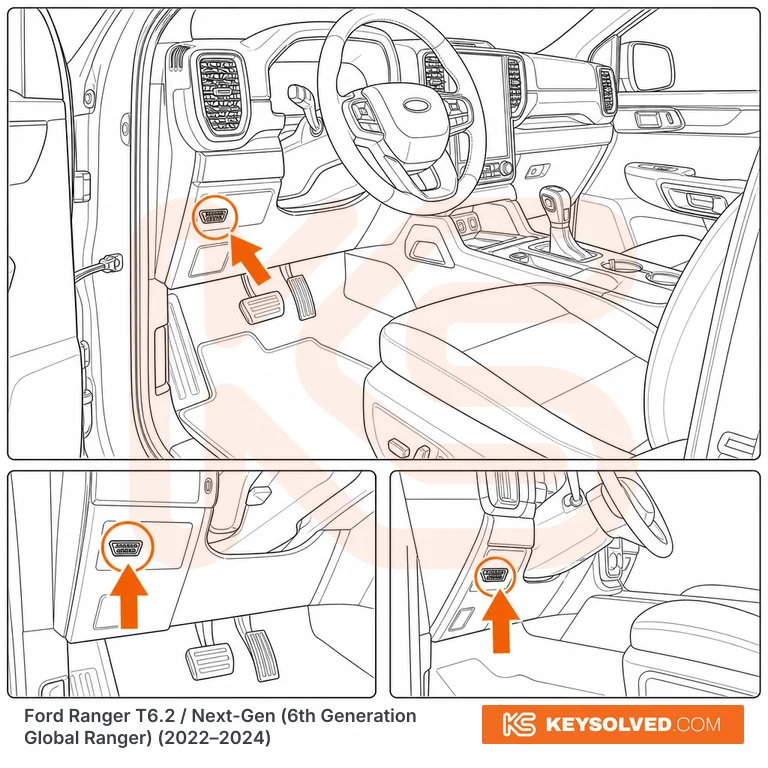

Diagnostic port location (OBD)
Illustrative — for orientation only.
Driver's side footwell, under the dashboard on the steering column side. In RHD markets (Australia, NZ, UK), the port is to the right of the steering column below the instrument panel, exposed or behind a small push-off cover panel without screws. Standard 16-pin OBD trapezoidal connector. Location confirmed consistent with the T6 PX3 architecture — the T6.2 retained the same cab/footwell layout. Australian launch: April 2022 (confirmed via Jefferson Ford Parts 'Ranger Next GEN 4/2022-on' product listing). UK/EU launch from 2023 model year. NOTE ON VW AMAROK NF: The NF Amarok (2022+) shares the T6.2 body-on-frame platform but uses VW/VAG interior architecture including OBD port placement per VAG convention. The Ford T6.2 Ranger OBD port location is independent of the Amarok NF and follows Ford architecture.
