FY / Typ 80A (2nd gen, MLB evo) - incl. SQ5, Q5 55 TFSI e plug-in hybrid, Q5 Sportback and SQ5 Sportback (2021-on). US model years 2018-2024 plus the run-out FY cars sold as 2025 models
Key reference: 8W0959754AN
Checked against tool makers' lists and key suppliers. We only change this date when the data has been rechecked against evidence, not for small edits. Spot something wrong? Use Report a data issue at the bottom of this page and we'll look again.
Key
Compatible tools
ConfirmedOBD port

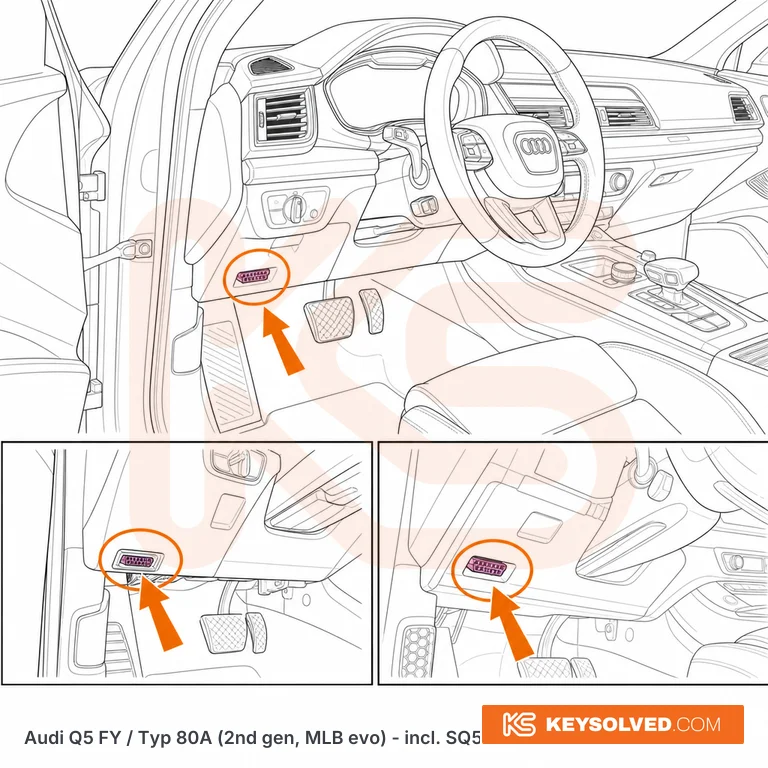

Illustration — use it to know where to look.
LHD (all US/Canada cars): driver's footwell, under the lower edge of the dashboard to the left of the steering column, low down by your left knee and above the footrest. The 16-pin socket is pink/purple, faces down and is clipped into the lower dash trim - crouch into the footwell and look up and left of the column. Same position on the Q5, SQ5, Q5 TFSI e plug-in hybrid and Sportback, before and after the 2021 facelift. If an insurance dongle or tracker has been fitted, follow its lead - the factory socket is sometimes unclipped and tucked further up behind the trim.
