8Z (Typ 8Z, 1999/2000-2005)
Key reference: 8Z0837231D
Checked against tool makers' lists and key suppliers. We only change this date when the data has been rechecked against evidence, not for small edits. Spot something wrong? Use Report a data issue at the bottom of this page and we'll look again.
Key variant · 1 of 2
Key
Compatible tools
ConfirmedOBD port

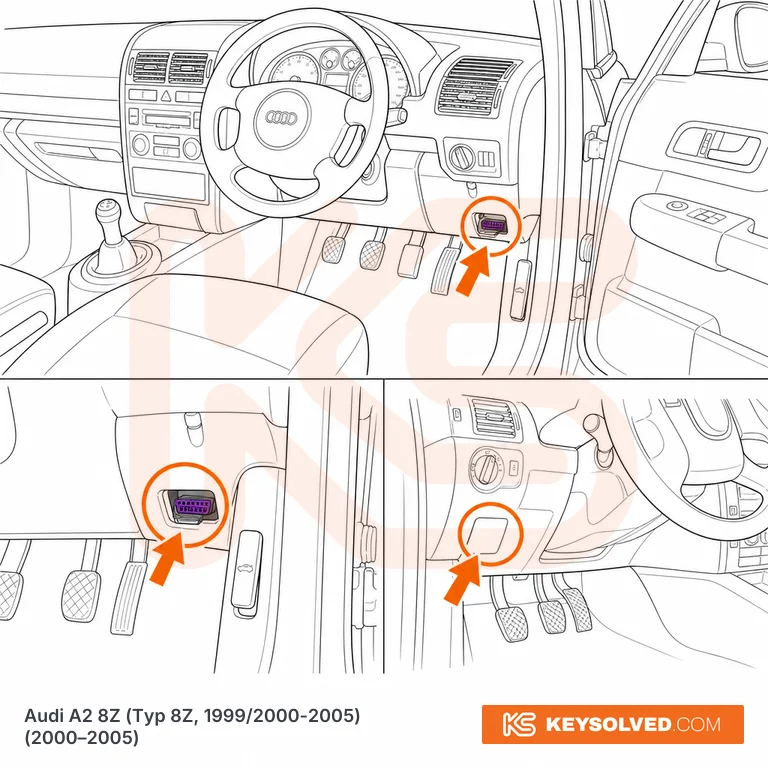

Illustration — use it to know where to look.
RHD (UK): driver's footwell, low under the dash on the door side of the steering column - roughly between your right knee and ankle, just left of and below the bonnet-release lever. The 16-pin socket is purple and sits in an opening in the lower dash trim, so kneel in the footwell with a torch and look up. If the opening is empty the socket has been pushed back behind the panel (common after brake-light-switch work) and the lower trim under the column has to come off to retrieve it. LHD: bottom left of the driver's footwell, left of the steering column above the pedals, behind a clip-on cover. No trim-specific differences reported across 1.4, TDI and FSI cars.
Small clip-on cover over the socket - unclip it by hand, no tools needed, and the 16-pin connector is directly behind it. On many older cars the cover is missing and the purple socket is visible straight away.
