Jaguar XE OBD port location

On every UK and European Jaguar XE we cover, the OBD port is on the driver's side.

One generation, 2015–2024.

2015–2024

X760

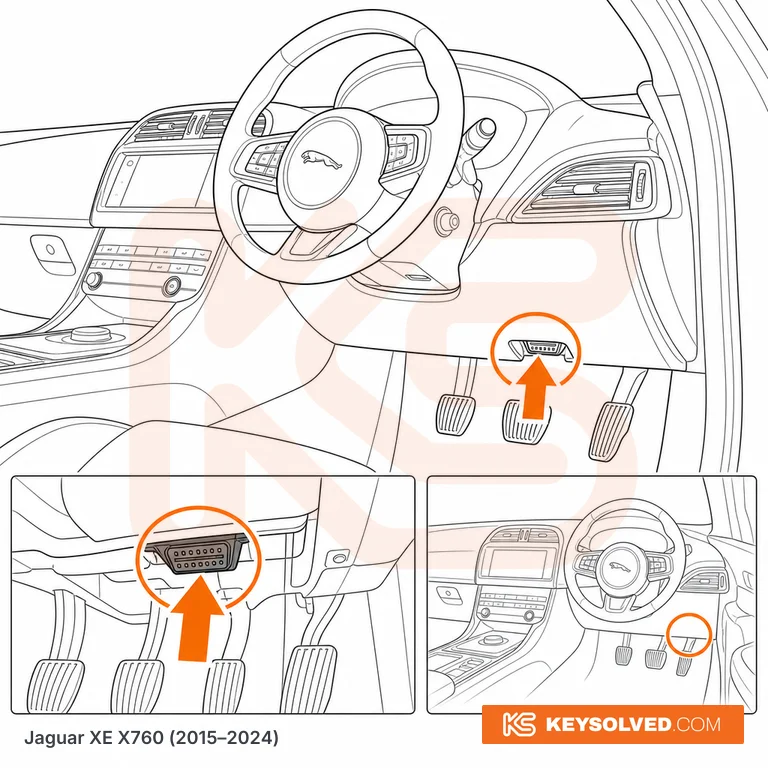

Illustration — use it to know where to look.

Location

RHD (UK): under the lower edge of the dashboard directly beneath the steering column, in the gap above the pedals where the column shroud ends. The 16-pin socket sits up behind the curved lower dash lip and faces downwards, so you won't see it from the seat - kneel in the footwell with a torch and look up above the pedals. Same position on all pre-facelift XE trims (SE, Prestige, R-Sport, Portfolio, S).

Also on this XE

  • KeysSmart key
  • Tools confirmed19
  • Transponder chipSubscribers
  • Programming procedureSubscribers
Open the full XE X760 record

For locksmiths

Doing this job for a customer?

Get the transponder chip, the add-key and all-keys-lost procedures, and which of your tools will do it, for every Jaguar XE.

Subscribe

Questions

Jaguar XE OBD questions

X760 (2015–2024): RHD (UK): under the lower edge of the dashboard directly beneath the steering column, in the gap above the pedals where the column shroud ends.
