Citroën Relay OBD port location

One generation, 2006–2014.

2006–2014

X250 (Sevel)

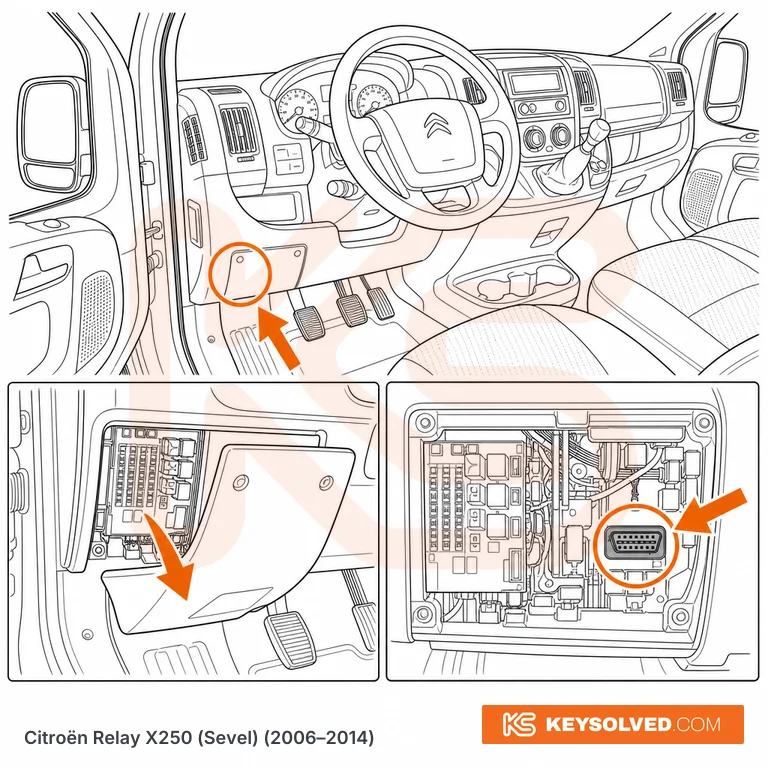

Illustration — use it to know where to look.

Location

Right-hand-drive UK vans: driver's side (right), behind the lower dashboard fuse-box panel down to the lower-right of the steering column, beside the cabin fuse board. The 16-pin socket sits behind that panel rather than out in the open. Same position across panel van, chassis cab and Luton/tipper bodies and all trims (the X250 dash is shared with the Fiat Ducato and Peugeot Boxer).

How to access

Undo the two plastic thumb/retaining screws on the lower fuse-box cover beside the steering column and pull the panel down by hand — the 16-pin connector is mounted next to the cabin fuse board behind it. A screwdriver helps if the screws are tight, but no trim-removal tools are needed.

Also on this Relay

  • KeysFlip remote · Transponder
  • Tools confirmed13
  • Transponder chipSubscribers
  • Programming procedureSubscribers
Open the full Relay X250 record

Questions

Citroën Relay OBD questions

X250 (2006–2014): Right-hand-drive UK vans: driver's side (right), behind the lower dashboard fuse-box panel down to the lower-right of the steering column, beside the cabin fuse board.

Found the port. Now program the key.

Step-by-step add-key and all-keys-lost procedures for every Relay, which of your tools will do it, and what catches people out.
